Correa Fox M Gantry Milling Machine

The FOX-M represents a new and innovative concept of bridge-type machine which combines traditional roughing capacity with the speed and precision of high performance machining.
It includes a unique system which controls the temperature generated in the vertical axis of the machine.

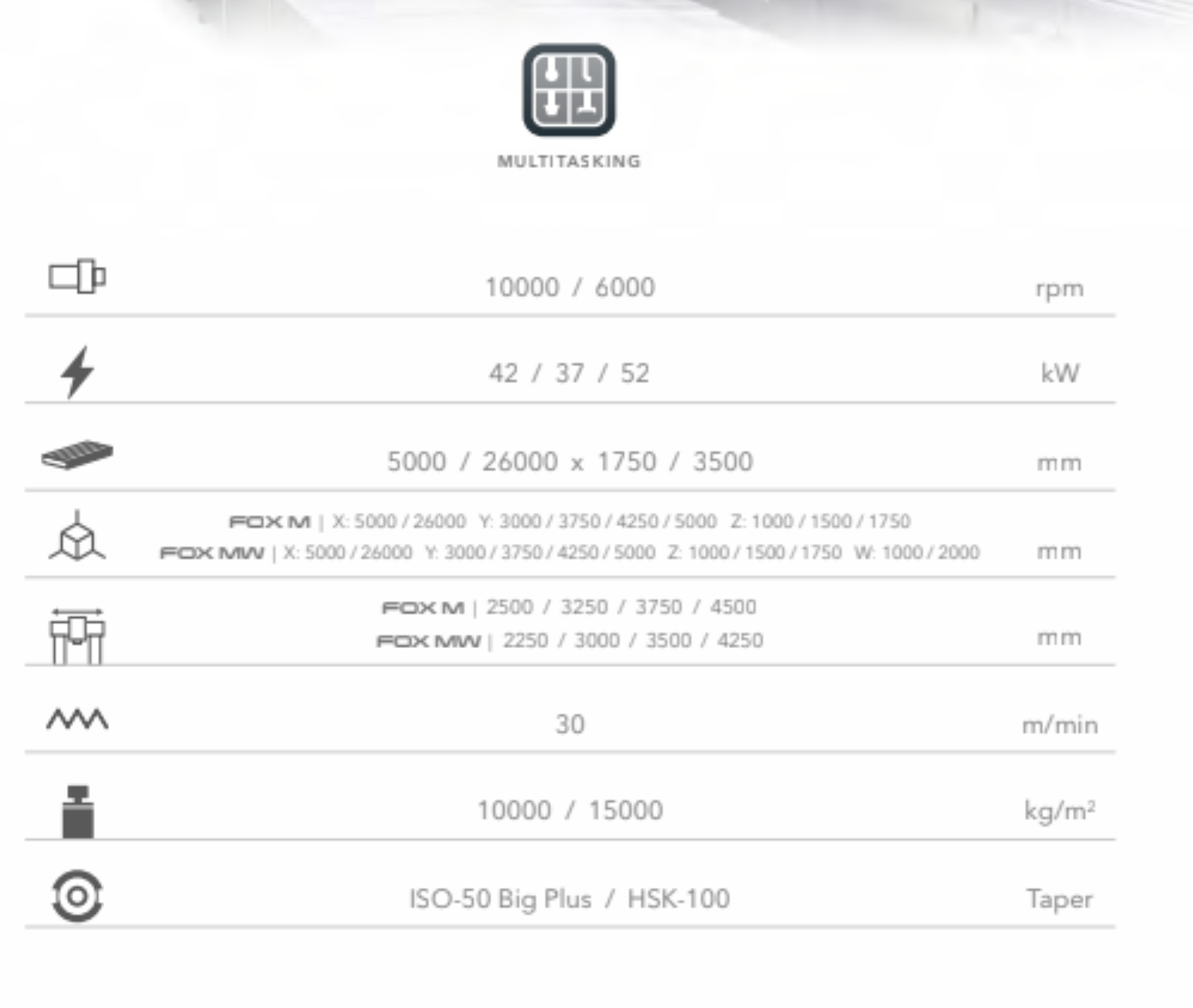

Longitudinal X axis 5.000 - 14.000m
Automatic Universal Head
Cross Y axis 2.500 / 3.000 / 3.200 / 3.750 / 4.250 / 4.500 / 5.000
Numerical control Heidenhain or Siemens (Operate HMI)
Vertical Z axis 1.000 / 1.500 / 1.750
Portable handwheel
Air-conditioned electrical cabinet
Linear guides in the X, Y axes
Friction guide at Z axis
Lamp in the working area
Hydraulic and cooling group
Absolute Heidenhain measurement rules in all axes
Exterior coolant with adjustable lance nozzles
Internal and external air flow
