Correa MAGNA Traveling Column Machine

The MAGNA represents the pure box-in-box concept, also incorporating two mechanical systems dynamically compensating for both ram droop and frame tipping. The result: tremendous chip removal capacity, maintaining very high levels of precision throughout the machine’s volume.

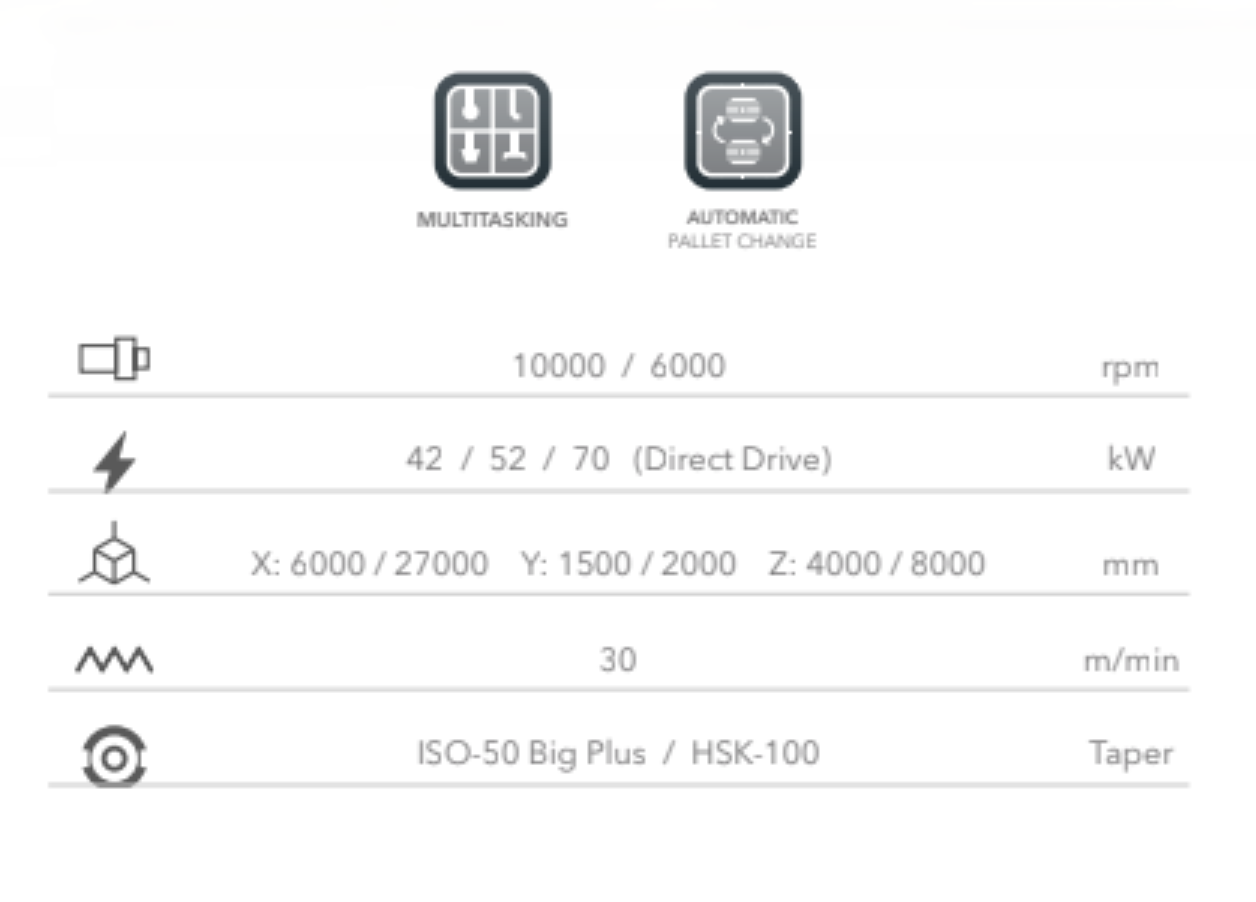

Longitudinal X axis 4.000 - 27.000 m
Automatic Universal Head
Cross Y axis 1.500 / 2.000 m
Numerical control Heidenhain or Siemens (Operate HMI)
Vertical Z axis 4.000 / 5.000 / 6.000 / 7.000 m
Portable handwheel
Air-conditioned electrical cabinet
Linear guides in the X, Y and Z axes
Lamp in the working area
Hydraulic and cooling group
Linear scales in all axes
External Coolant with adjustable nozzles in the head
Internal and external air flow
