Correa Norma-L Traveling Column Machine 45/60/80
The NORMA L represents a new concept in mobile column machine with lateral ram. Very sturdy thanks to the L-shaped ram guide and triple X-axis guide. Precision thanks to the mechanical ram droop correction system. A flexible machine suitable for machining and finishing operations.

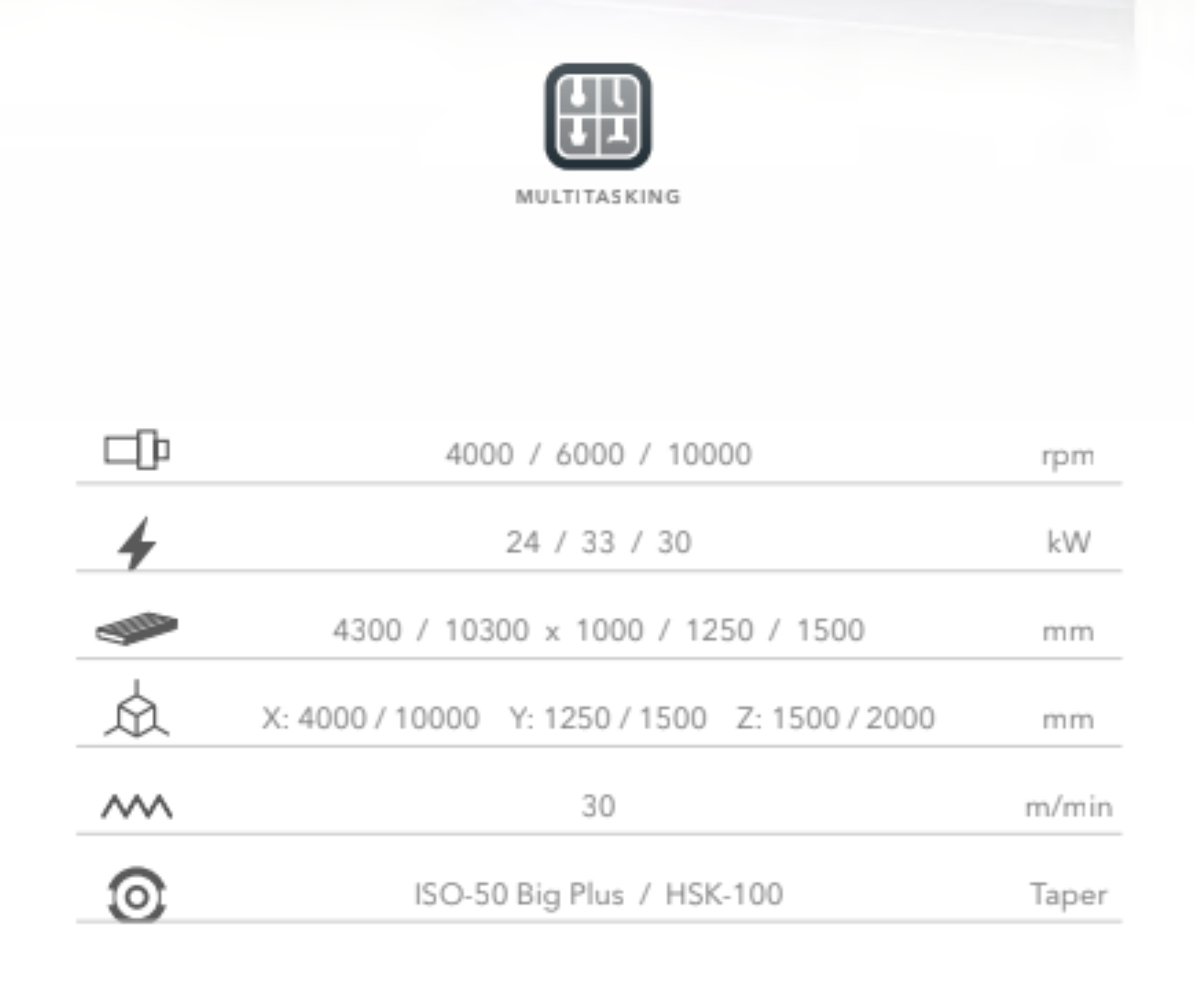

Longitudinal X axis 4,000 / 5,500 / 7,000 / 8,500 / 10,000m
Automatic Universal Head
Cross Y axis: 1,250 / 1,500 m
Numerical control Heidenhain
Vertical Z axis: 1,500 / 2,000 m
Portable handwheel
Air-conditioned electrical cabinet
Linear guides in the X, Y and Z axes
Lamp in the working area
Gearbox Hydraulic group
Linear scales in all axes
External Coolant with adjustable nozzles in the head
Perimeter fence
Direct Tele-service
Programmable Speed: 3,000 / 6,000 / 10,000 rpm
Max Power: 24 / 33 / 30 kW
